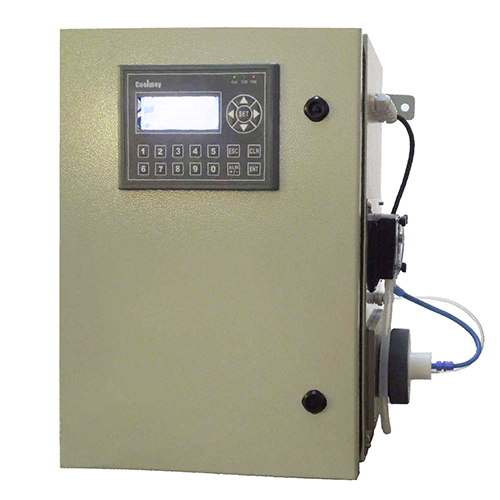

CZGL-15 On-line Self Cleaning Filter

CZGL-15 On-line Self Cleaning Filter

    CZGL-15 on-line self cleaning filter is used with KLD on-line analyzer. The Filter startup is controlled by the analyzer and the rinsing circle & the filtration time are controlled by the controller integrated into the PLC.


Hits:143
Product Presentation

    CZGL-15 on-line self cleaning filter is used with KLD on-line analyzer. The Filter startup is controlled by the analyzer and the rinsing circle & the filtration time are controlled by the controller integrated into the PLC.

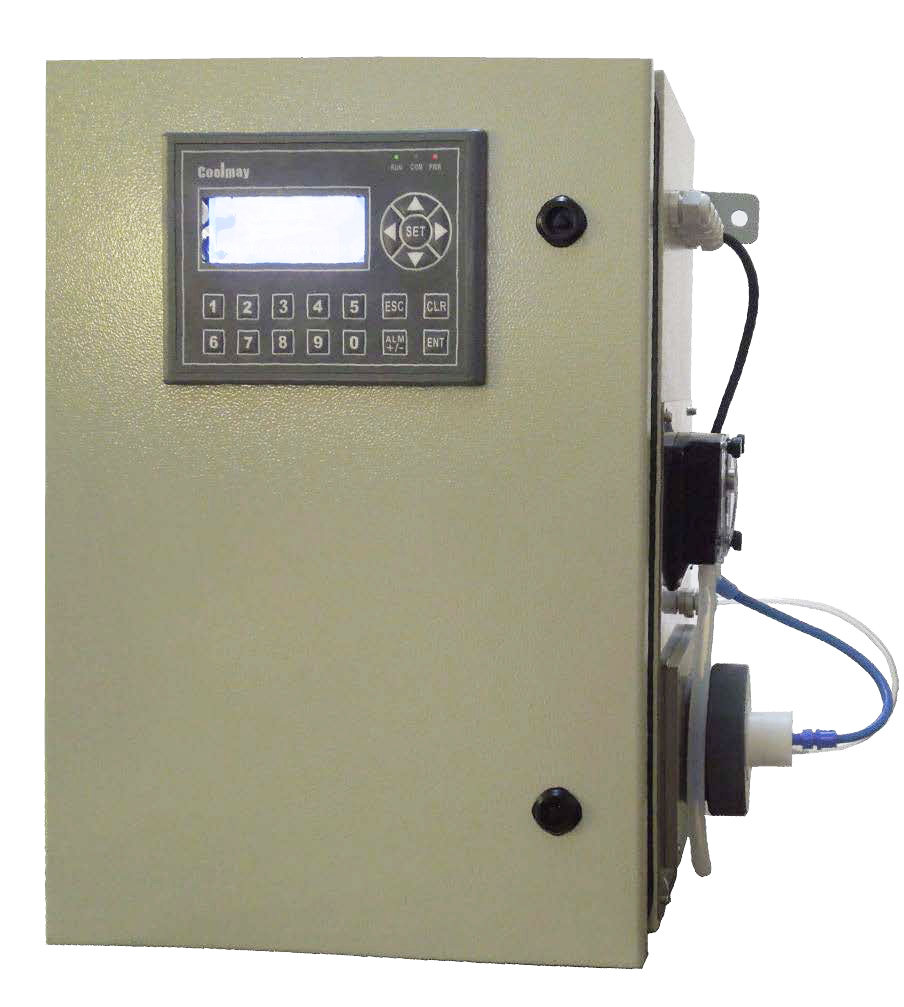

KLD Mono&Multiple Water Quality Analyzer-4.jpg

Features

  •  Continuous or interval filtration treatment applies to all the analyzer of KLD.

  •  Filtration unit is controlled by built-in PLC and the analyzer.

  •  The amount of filtration water is sufficient for the analyzer.

  •  The sample after filtration does not contain solid particles or suspended solids.

  •  Backwashing the filtration system with compressed air ensures high cleaning efficiency and low maintenance.

  •  Sample delivered by peristaltic pump, stable flow.

  •  AISI304 stainless steel exterior, suitable for severe environment.

  •  External pump can be driven by the filteration unit.


Operating principle

    When KLD on-line analyzer is started, it drives the relay to send signal to PLC of filteration unit.The unit begins to filter sample according to the cycles setup in the PLC and meanwhile the timer starts to count. PLC is used for activating the external sampling pump, the air compressor and the peristaltic pump and the solenoid valve for self cleaning. It completes the sampling according to the time programmed.


Specifications

FilterationWater volume60L/h
Water sample deliveryQuality

Without solid particles or suspended solids

PowerPeristaltic pump
Sample pressure0.3bar
Max flow500L/h( max pressure 1bar )
Self cleaning pressure0.6bar/ max pressure 1.2 bar
ElectricVoltageAC 220V±10%
Power24W
ProtectionIP65
Environment requirementTemperature5 ~ 50°C
Humidity4 ~ 95% without condensation
MaterialCabinetAISI304+spray
FilterAISI316
Hydraulic connectionPVC
Dimension500×400×200mm(H×W×D)
Weight10kg
